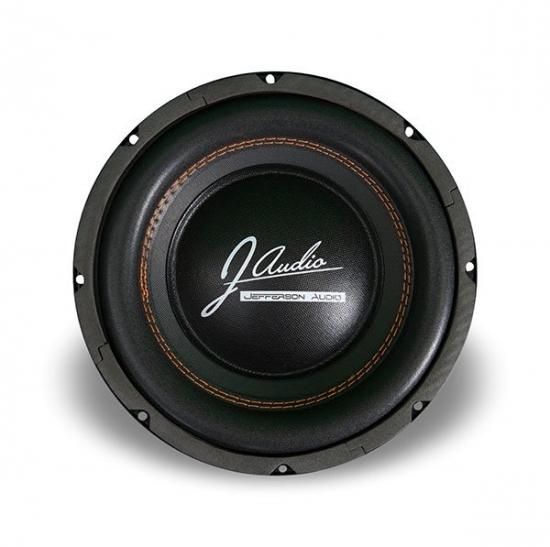

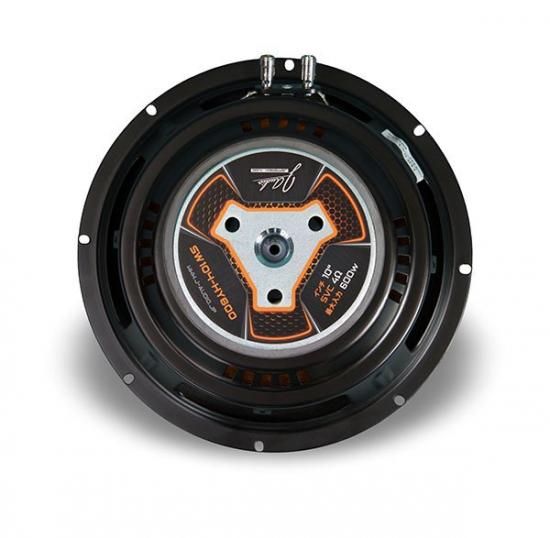

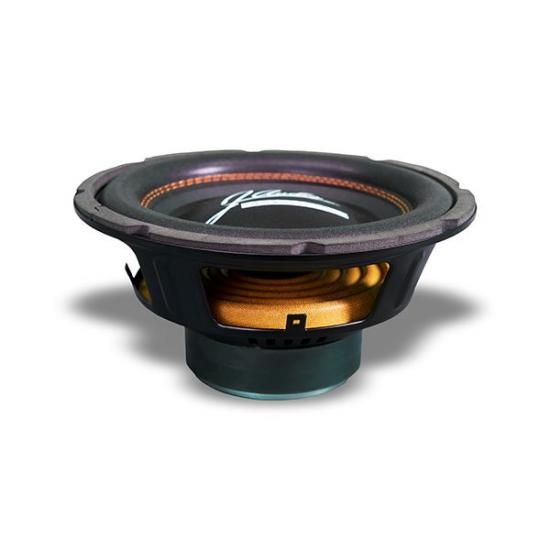

SW104-HY600

販売価格	29,000円(税込31,900円)

SOLD OUT

特定商取引法に基づく表記 (返品など)

SUBWOOFER
Hybrid Line
10 Inches
600 W
4 Ohms

SPECIFICATIONS
Size (Inch/mm) 10″
Nominal Impedance 4 Ohms
Power Handling (Rms/Max) 600 w
Frequency Response (-10dB) 40 Hz – 1.5 kHz
Sensitivity (Effective Band) 90 dB
Voice Coil Diameter 39 mm
Net Weight 2.8 Kg

THIELE-SMALL PARAMETERS
Fs 44.5 Hz
VAS 38.9 L
Qts 0.71
Qes 0.79
Qms 6.79
No 0.41 %
Sd 326 cm²
Bl 7.53 Tm
Re 3.27 Ohms
Mms 49.3 g
Cms 0.26 mm/N
Xmax 7 mm
Xlimit 14 mm

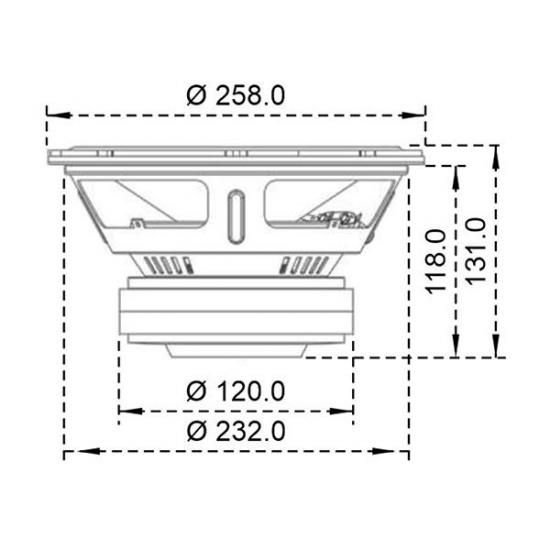

MEASUREMENTS
Size Ø 258 mm
Magnet Ø 120 mm
Cutout Ø 232 mm
Depth 118 mm
Height 131 mm
APPLICATIONS
LOW BASS ✷ ✷ ✷
BASS ✷ ✷ ✷ ✷
MIDBASS ✷ ✷ ✷ ✷
HIGH
