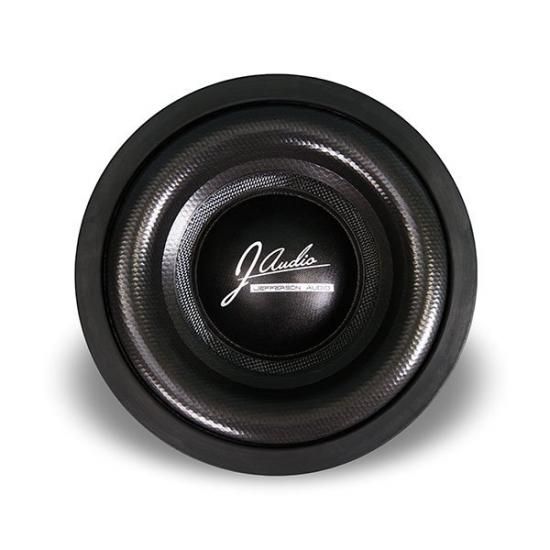

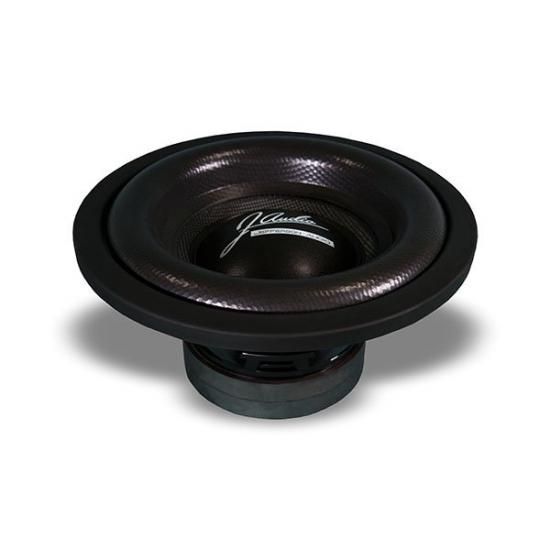

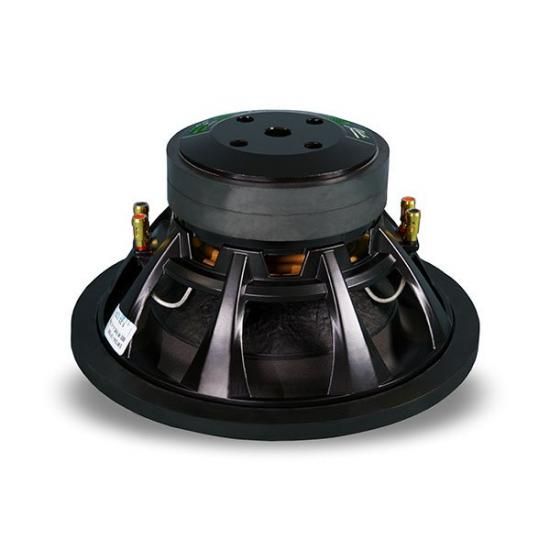

SW1244-ST1500

販売価格	52,000円(税込57,200円)

SOLD OUT

特定商取引法に基づく表記 (返品など)

SUBWOOFER
Standard Line
12 Inches
1.5 Kw
4+4 Ohms

SPECIFICATIONS
Size (Inch/mm) 12″
Nominal Impedance 4+4 Ohms
Power Handling (Rms/Max) 1.5 kW
Frequency Response (-10dB) 20 Hz – 900 kHz
Sensitivity (Effective Band) 87 dB
Voice Coil Diameter 63.5 mm
Net Weight 8.4 Kg

THIELE-SMALL PARAMETERS
Fs 38 Hz
VAS 33.6 L
Qts 0.49
Qes 0.53
Qms 7.32
No 0.34 %
Sd 453 cm²
Bl 21.72 Tm
Re 3.54 + 3.54 Ohms
Mms 146.8 g
Cms 0.12 mm/N
Xmax 13 mm
Xlimit 23 mm

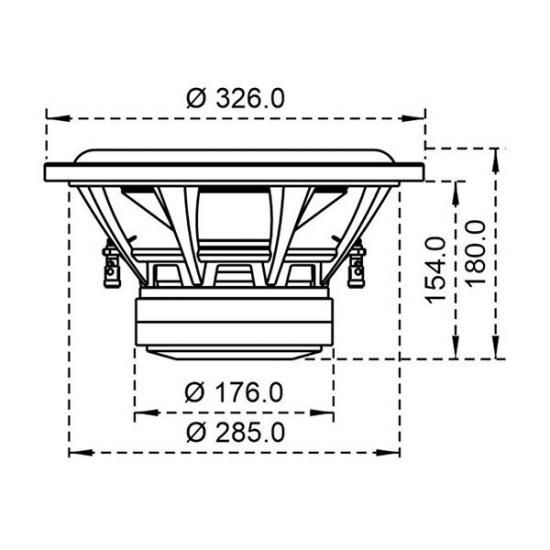

MEASUREMENTS
Size Ø 326 mm
Magnet Ø 176 mm
Cutout Ø 285 mm
Depth 154 mm
Height 180 mm
APPLICATIONS
LOW BASS ✷ ✷ ✷ ✷ ✷
BASS ✷ ✷ ✷ ✷
MIDBASS ✷ ✷ ✷
HIGH
