W154-ST4000

販売価格	80,000円(税込88,000円)

SOLD OUT

特定商取引法に基づく表記 (返品など)

WOOFER
Standard Line
15 Inches
2 Kw
4 Ohms

SPECIFICATIONS
Size (Inch/mm) 15″
Nominal Impedance 4 Ohms
Power Handling (Rms/Max) 4 kW
Frequency Response (-10dB) 40 Hz – 1.7 kHz
Sensitivity (Effective Band) 95 dB
Voice Coil Diameter 99 mm
Net Weight 13.5 Kg

THIELE-SMALL PARAMETERS
Fs 50 Hz
VAS 54.50 L
Qts 0.38
Qes 0.39
Qms 11.48
No 1.70 %
Sd 809 cm²
Bl 20.34 Tm
Re 3.06 Ohms
Mms 168.0 g
Cms 0.06 mm/N
Xmax 7 mm
Xlimit 22 mm

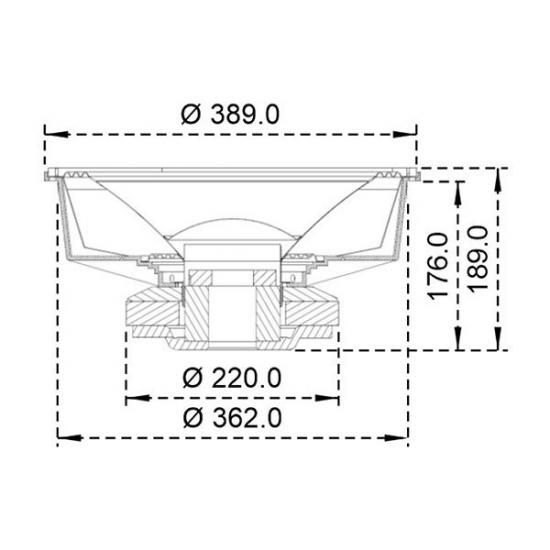

MEASUREMENTS
Size Ø 390 mm
Magnet Ø 220 mm
Cutout Ø 362 mm
Depth 176 mm
Height 189 mm
APPLICATIONS
LOW BASS ✷ ✷ ✷ ✷
BASS ✷ ✷ ✷ ✷ ✷
MIDBASS ✷ ✷ ✷ ✷
HIGH ✷ ✷
